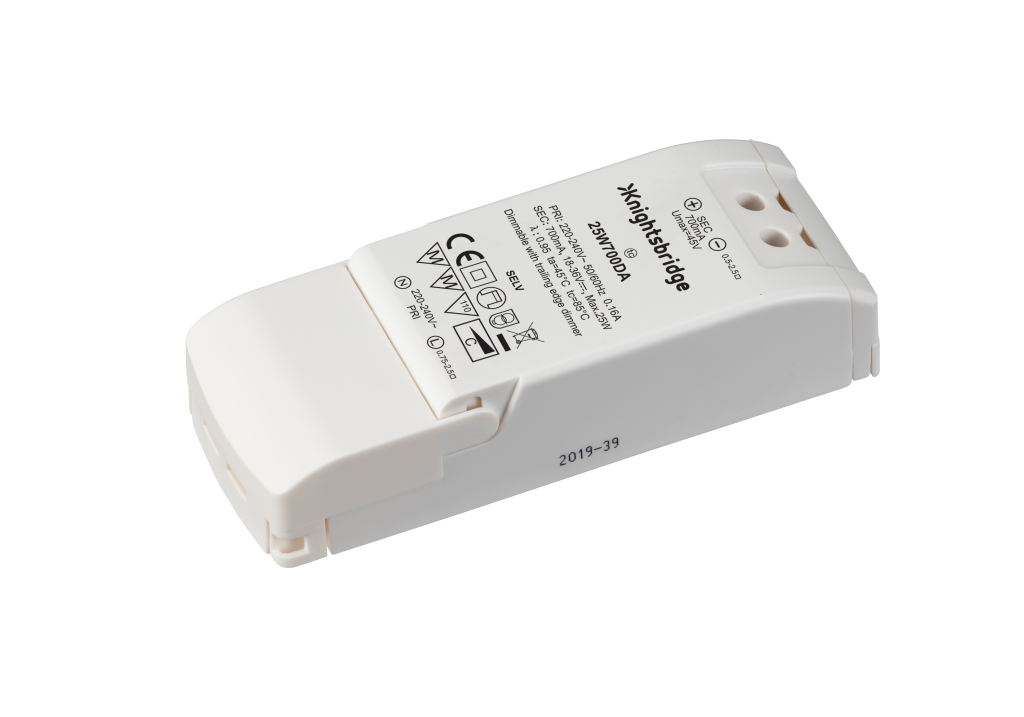

Knightsbridge IP20 700mA 25W Constant Current Dimmable LED Driver
Knightsbridge IP20 700mA 25W Constant Current Dimmable LED Driver
- Estimated delivery: 2 - 5 working days
- Free delivery: on orders over £95.00 to mainland UK
Knightsbridge IP20 700mA 25W Constant Current Dimmable LED Driver
Knightsbridge IP20 700mA 25W Constant Current Dimmable LED Driver
- Dimmable: trailing-edge only (Please check compatibility before installation)
- Constant current LED driver
- 18-36V
- 700mA
- 25W
- Construction: polycarbonate
- Finish: White
- Class: II
- IP rating: 20
- Indoor use only
- Primary voltage: 230V 50Hz
- Warranty: 3 years

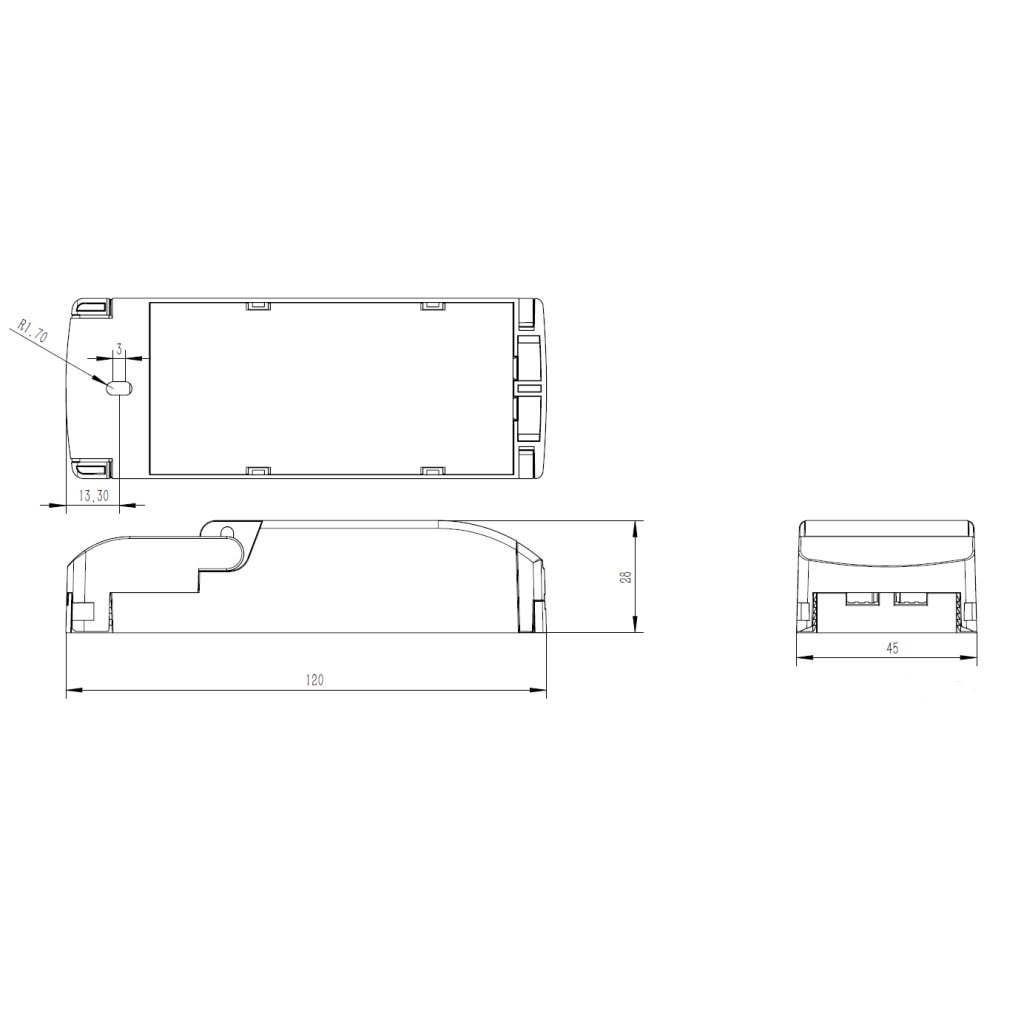

- Dimensions (mm):
- Length - 120
- Height - 28
- Width - 45
|
|
|---|---|
|
This product is IP20 rated |
|
|
|
Zone 0
Inside the bath or shower tray. Minimum IP rating of IP67, and a maximum voltage of 12 V.
Zone 1
Directly above the bath to a height 225 cm from the floor, or the inside of shower cubicle excluding the tray. Minimum IP rating of IP65.
Zone 2
60 cm perimeter around the bath or shower to a height 225 cm from the floor. 60 cm radius around sink tap. Minimum IP rating of IP44.
Zone 3
Anything outside the other zones. No IP rating requirements.
Description
- Primary Voltage 230 V
- Product Driver
- Secondary Current 0.700 A
- Secondary Voltage 18|36 V
- Secondary Voltage Type DC
- Type Constant Current
Dimensions
- Height 28 mm
- Length 120 mm
- Width 45 mm
Features
- Dimmable Y
- Ingress Protection IP20
- Wattage 25 W
General
- CE Approved Y
- UKCA Approved Y
- Unit Weight 0.1 kg
- Warranty 3 Years
Material & Finish
- Colour White
- Material Polycarbonate PC
Technical Data
- Average Lifespan 50000 Hours
- Frequency 50 Hz
- Maximum Operating Temperature 45 Degrees C
- Minimum Operating Temperature -20 Degrees C
