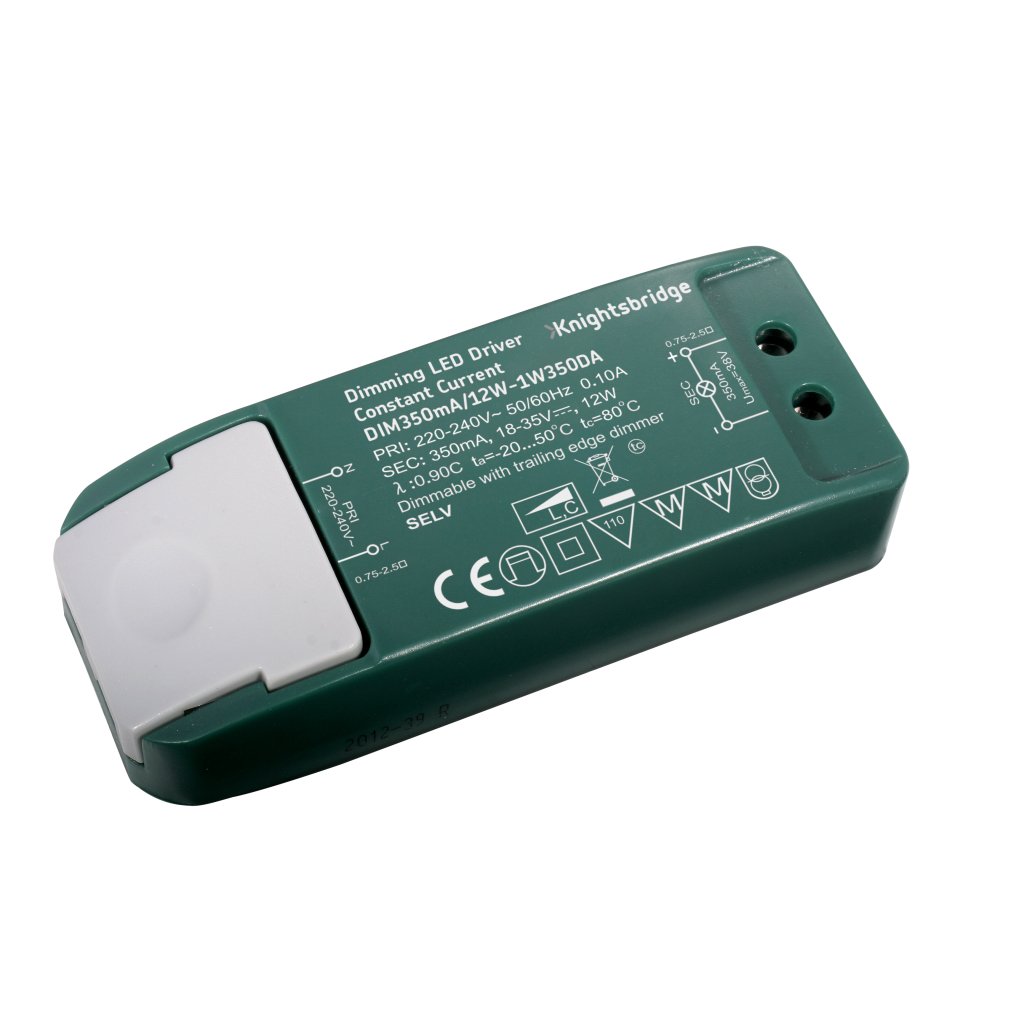

Knightsbridge IP20 350mA 12W Constant Current Dimmable LED Driver
Knightsbridge IP20 350mA 12W Constant Current Dimmable LED Driver
- Estimated delivery: 2 - 5 working days
- Free delivery: on orders over £95.00 to mainland UK
Knightsbridge IP20 350mA 12W Constant Current Dimmable LED Driver
Knightsbridge IP20 350mA 12W Constant Current Dimmable LED Driver
- Dimmable: trailing-edge only (please check compatibility before use)
- Constant current driver
- 18-35V
- 350mA
- 1-12W
- Construction: polycarbonate
- Class: II
- IP rating: 20
- Primary voltage: 230V 50Hz
- Warranty: 1 year
- Dimensions (mm):
- Length - 98
- Height - 22
- Width - 39
|
|
|---|---|
|
This product is IP20 rated |
|
|
|
Zone 0
Inside the bath or shower tray. Minimum IP rating of IP67, and a maximum voltage of 12 V.
Zone 1
Directly above the bath to a height 225 cm from the floor, or the inside of shower cubicle excluding the tray. Minimum IP rating of IP65.
Zone 2
60 cm perimeter around the bath or shower to a height 225 cm from the floor. 60 cm radius around sink tap. Minimum IP rating of IP44.
Zone 3
Anything outside the other zones. No IP rating requirements.
Description
- Primary Current 0.1 A
- Primary Voltage 230 V
- Product Driver
- Qualifier Dimmable Constant Current 12W
- Secondary Current 0.350 A
- Secondary Voltage 18|35 V
- Secondary Voltage Type DC
- Type Constant Current
Dimensions
- Height 22 mm
- Length 98 mm
- Width 39 mm
Features
- Dimmable Y
- Ingress Protection IP20
- Mounting Surface
- Number of Modules 1
- Wattage 12 W
General
- CE Approved Y
- Standards BS EN 61347
- UKCA Approved Y
- Unit Weight 0.06 kg
- Warranty 1 Years
Material & Finish
- Material Polycarbonate PC
Technical Data
- Frequency 50 Hz
- Maximum Operating Temperature 50 Degrees C
- Minimum Operating Temperature -20 Degrees C
- Number of Phases Single
